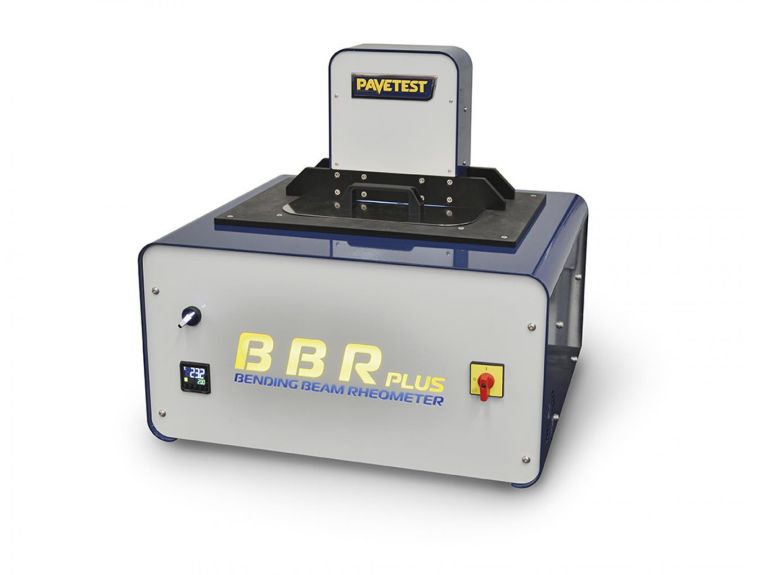

Pavetest Bending Beam Rheometer
The Pavetest BBR is a thermoelectrically-cooled bending beam rheometer for testing flexural creep of asphalt binders from ambient to –40 °C (± 0.03 °C).
The load is applied by a miniature servo-controlled actuator capable of applying up to +/- 10N and loading frequency from static to 25Hz, without the need for compressed air supply. The use of servo-control eliminates the need for frequent calibration and repeated adjustment of air bearing pressures. Just enter the required load and the servo-controlled actuator will apply and maintain the requested load with incredible precision. The temperature is controlled very precisely using a temperature controller mounted on the front of the machine. The user can set the bath temperature using the controller or via the software. The BBR is supplied complete with a suitable chiller to ensure a temperature range between ambient and -40°C. The heart of the system is Pavetest’s industry leading Control and Data Acquisition System (CDAS) and world acclaimed (TestLab) software.
Common Applications:
- Flexural creep of asphalt binders
- Low temperature characterization of crack seal under load
- EN 14771, ASTM D6648, AASHTO T313, SHRP Binder Provisions For Low Temperature Flexural Creep Testing of Asphalt Binders
Property: Pavetest - Static and dynamic, Pavetest - Static and dynamic
- Servo-control eliminates the need for frequent calibration and repeated adjustment of air bearing pressures
- Loading frequency from static to 25Hz
- No need for compressed air supply
- TE-cooled with solid-state Peltier devices
- Includes a separate air-water heat exchanger
- An integrated, self-contained bath cools using ethanol as the bath medium
- Set and monitor the temperature of the bath via the software
- Meets or exceeds ASTM, AASHTO and SHRP requirement for low temperature flexural creep testing of asphalt binders including ASTM D6648 and AASHTO T313
- Temperature range: Ambient to −40 °C
- Temperature stability: ± 0.03 °C with resolution to ± 0.01 °C
- Resolves specimen beam deflection to 0.01 µm
- Load cell span: 50 N
- Load cell resolution: 50 µN
- Range: 20 MPa to 1 GPa
- Loading frequency from static to 25Hz
- Power supply:
- BBR: 110-230V, 50/60Hz, 1ph, 850W
- Chiller: 230V, 50/60Hz, 1ph, 590W or 110V, 50/60Hz, 1ph
- Dimensions:
- BBR: 60x50x52(h) cm
- Chiller: 47x53x40(h) cm
- Weight:
- BBR: 39 kg
- Chiller: 48 kg
